M Code and G Code are the backbone of CNC machine programming, controlling everything from spindle speed to tool movements. But in today’s advanced manufacturing environment, their role goes beyond simple command execution. These codes are now tightly integrated with cutting-edge CNC technologies such as CAD/CAM systems, robotic automation, and IoT-enabled machines. This article explores how M and G codes interact with these technologies to streamline workflows, increase production efficiency, and deliver higher precision in modern machining processes.

Seamless Integration of M and G Codes with Advanced CNC Technologies

M codes and G codes are the backbone of CNC programming. G codes guide the machine’s movements, while M codes control auxiliary functions. Alone, these codes are powerful. But when integrated with advanced CNC technologies like CAD/CAM systems and PLCs, they unlock greater automation, precision, and productivity. This integration helps manufacturers push boundaries in speed, accuracy, and design flexibility.

Modern manufacturing doesn’t just rely on manually written code. Engineers now use advanced software and controllers to create smarter workflows. M and G codes still play a critical role, but they are now part of a larger digital ecosystem.

Integrating G Codes with CAD/CAM Systems

Computer-Aided Design (CAD) and Computer-Aided Manufacturing (CAM) software are essential tools in CNC machining today. CAD allows engineers to create detailed digital designs of parts. CAM software takes these designs and converts them into toolpaths, which guide the CNC machine’s movements. This process is where G codes come into play.

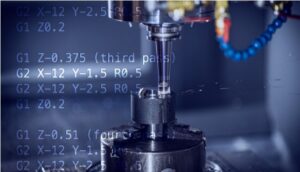

How CAD/CAM Software Generates G – Code Programs

Once a part is designed in CAD, the CAM system interprets it. It identifies machining features such as holes, pockets, and contours. The software then applies cutting strategies—like roughing, finishing, or contour milling—to those features. From this information, the CAM system automatically generates G code programs.

The G code defines each tool movement. For example, G01 commands a linear move, while G02 and G03 define clockwise and counterclockwise arcs. The software also adds tool changes, feed rates, and spindle speeds. All this happens with a few clicks, saving hours compared to writing code by hand.

Modern CAM software allows customization of post-processors. These tools convert generic CAM output into machine-specific G code. That way, the same CAD file can be adapted for different machines without rewriting everything.

Benefits of G – Code – CAD/CAM Integration

This integration offers massive advantages. First, it reduces human error. Manual programming can be complex and prone to mistakes. CAM-generated G code is consistent and optimized. It eliminates guesswork and improves CNC precision part accuracy.

Second, it saves time. Designing and generating code through CAD/CAM is faster than manual methods. Shops can move from design to production in hours instead of days.

Third, it supports complex geometries. CAM software can create toolpaths for intricate designs that would be nearly impossible to program manually. This ability is key in industries like aerospace, medical, and automotive, where precision and complexity matter.

Finally, it simplifies design changes. If a designer modifies the part, the CAM system updates the toolpaths and regenerates the G code. This flexibility speeds up prototyping and production adjustments.

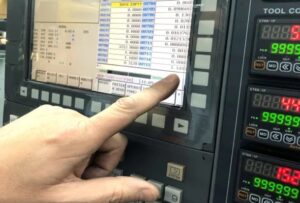

M – Code Integration with PLC – Controlled CNC Machines

While G codes manage motion, M codes handle machine functions like tool changes, coolant control, and spindle start or stop. These codes interact closely with Programmable Logic Controllers (PLCs), which handle logic and process control in complex machines.

Coordination between M Codes and PLC Logic

A PLC acts like the brain behind many CNC machines. It monitors sensors and signals, controls mechanical components, and ensures safe operation. M codes serve as commands that trigger specific PLC routines.

For example, when the machine reads M06 (tool change), the PLC checks that the spindle has stopped, confirms the tool magazine is ready, and then activates the mechanism. If anything is out of place, the PLC will prevent the action or pause the process to avoid a crash.

M08 might turn on the coolant, and the PLC ensures the pump is working before allowing cutting to begin. M30 signals the end of a program and can trigger clean-up routines, part ejection, or data logging.

M codes and PLCs work together to automate these sequences. This integration allows for safer, more reliable operations. It also improves machine flexibility. Manufacturers can customize M code behavior by changing PLC logic—without touching the main CNC program.

Enhanced Functionality through M – Code – PLC Integration

This M code and PLC relationship opens the door for advanced automation. With the right setup, M codes can trigger conveyors, robotic arms, quality inspection devices, or even data uploads to cloud systems.

This kind of setup is common in smart factories. A single M code might complete an entire sequence—like changing tools, checking dimensions, and notifying the operator when the part is ready. It reduces downtime, increases consistency, and cuts labor costs.

Another benefit is modularity. Engineers can update or reprogram the PLC to change how M codes behave. They don’t need to rewrite the whole CNC part program. That allows for faster upgrades, better customization, and long-term flexibility in manufacturing systems.

Comparing Integration Success with M and G Codes

Both M and G codes play vital roles in CNC integration. But they integrate differently depending on the system. Comparing their ease of integration and performance outcomes helps understand how each fits into modern production workflows.

Ease of Integration: M Code vs G Code

G codes are easier to integrate with CAD/CAM systems. CAM software is widely available and built with G code generation in mind. Most CNC machines accept standard G code formats, so integration is usually smooth.

M codes, however, often vary from one machine or controller to another. Their behavior depends on how the PLC interprets each code. One M06 command might behave differently across brands or models. Integrating M codes requires a deep understanding of the machine’s PLC logic.

Despite this complexity, integrating M codes with PLC systems offers great customization. It just takes more time and technical skill compared to G code integration.

Performance Improvements with Each Integration

G code command integration mainly improves machining accuracy, speed, and design handling. Parts get made faster and with fewer mistakes. Designers have more freedom, and changes are easy to implement.

M code integration enhances system automation. Machines run more independently. They self-check, respond to sensors, and reduce the need for manual supervision. Production lines become more efficient and less prone to stoppages.

Together, these integrations create a high-performance environment. The CNC machine not only moves precisely but also performs all its support tasks smartly and efficiently.

Conclusion

M and G codes remain essential to CNC machining, even in today’s advanced manufacturing world. But their true power shines through integration.

G codes integrate smoothly with CAD/CAM systems. This link speeds up programming, reduces errors, and allows complex designs to reach the shop floor with ease. M codes work closely with PLCs to automate machine functions. This integration brings safety, customization, and smart automation to CNC systems.

Both code types play different roles, but their combined integration unlocks smarter, faster, and more flexible manufacturing. Shops that leverage both systems will stay ahead in precision, performance, and innovation.
